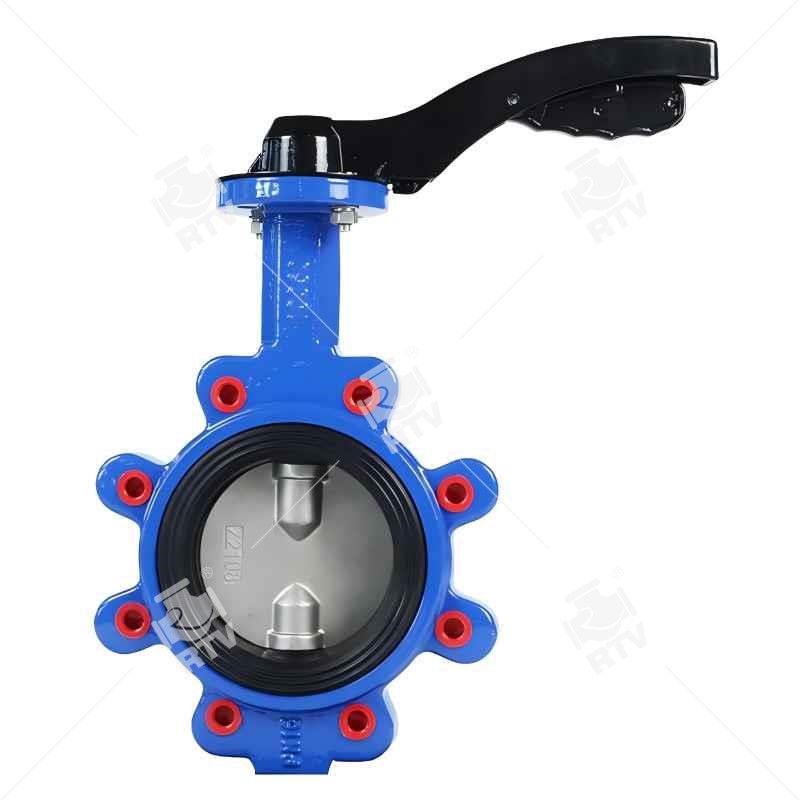

Lug Butterfly Valve (Half Shaft Without Pin) Introduction
This Lug Butterfly Valve (Half Shaft Without Pin) is a durable and reliable option for controlling the flow of fluid in your system. Made with high-quality materials, it offers a high percentage of functionality and longevity, making it a cost-effective choice. Its half shaft design allows for easy installation and maintenance, providing convenience and reducing downtime. Perfect for industrial and commercial applications, this valve is a must-have for any system.
Lug Butterfly Valve (Half Shaft Without Pin) Drawing
Standard of Implementation
| Specification | Details |
|---|---|
| Type | Lugged |
| Face to Face | API609, BS5155, DIN3202, ISO5752 |
| Flange | DIN, BS, UNI, ISO, ANSI, AS, JIS |
| Mounting Flange | ISO5211 |
| Working Pressure | PN16 (200PSI) |
| Application | HVAC, Water Supply & Sewage, Food & Beverage, Chemical/petrochemical processing, Power and Utilities, Paper and Pulp, Ship Building |
Standard Materials Of Main Parts
| ITEM | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | CI/DI/CS/SS |
| 2 | Seat | EPDM/NBR/PTFE/Viton/Hypalon |
| 3 | Lower Shaft | SS416/316/304 |
| 4 | Disc | CF8/CF8M/DI Ni/CF8 PTFE/CF8M PTFE |
| 5 | Upper Shaft | SS416,316,304 |
| 6 | O Ring | NBR/EPDM |
| 7 | Bushing | PTFE |
| 8 | BOLTS | CS |
Dimensions:(mm)
